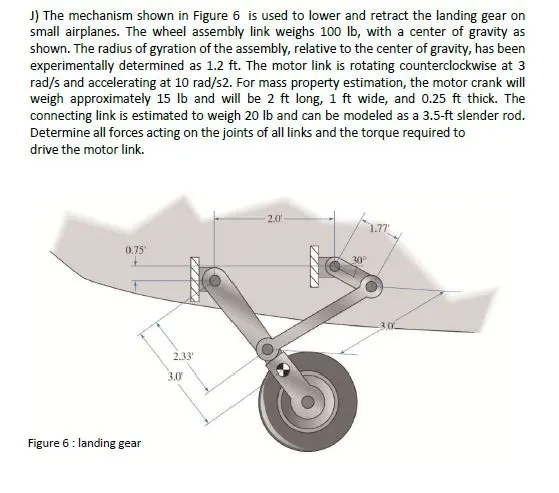

J) The mechanism shown in Figure 6 is used to lower and retract the landing gear on small airplanes. The wheel assembly link weighs 100 lb, with a center of gravity as shown. The radius of gyration of the assembly, relative to the center of gravity, has been experimentally determined as 1.2 ft. The motor link is rotating counterclockwise at 3 rad/s and accelerating at 10 rad/s2. For mass property estimation, the motor crank will weigh approximately 15 lb and will be 2 ft long, 1 ft wide, and 0.25 ft thick. The connecting link is estimated to weigh 20 lb and can be modeled as a 3.5-ft slender rod. Determine all forces acting on the joints of all links and the torque required to drive the motor link. 0.75 Figure 6: landing gear 2.33' 3.0 2.0 30°
