السؤال

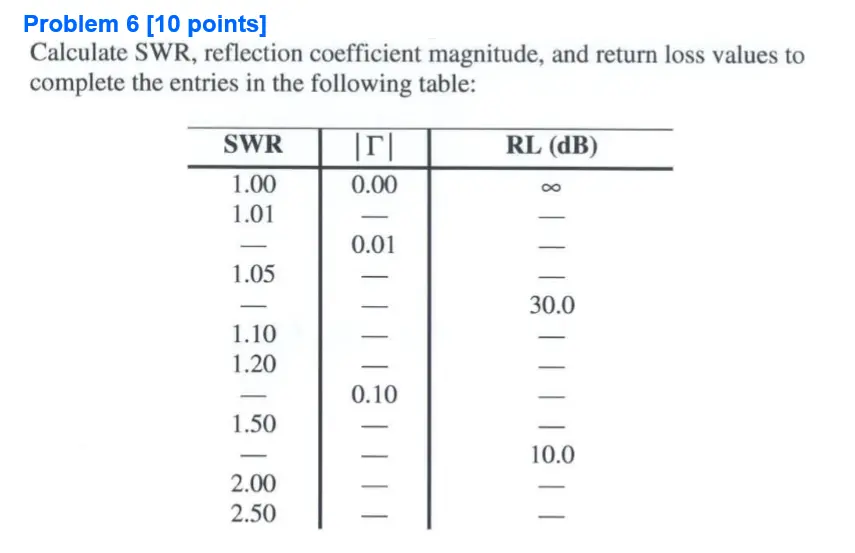

Transcribed Image Text:
Problem 6 [10 points]
Calculate SWR, reflection coefficient magnitude, and return loss values to
complete the entries in the following table:
SWR
|r|
1.00
0.00
1.01
0.01
1.05
-
RL (dB)
| | | 8
30.0
1.10
1.20
0.10
1.50
10.0
2.00
2.50
