السؤال
Transcribed Image Text:

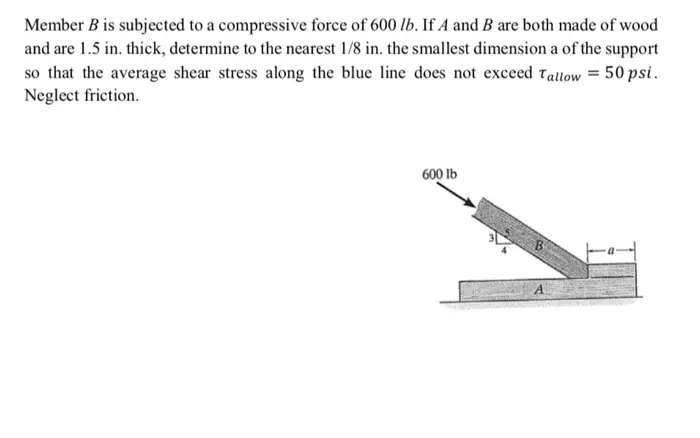

Member B is subjected to a compressive force of 600 lb. If A and B are both made of wood
and are 1.5 in. thick, determine to the nearest 1/8 in. the smallest dimension a of the support
so that the average shear stress along the blue line does not exceed Tallow = 50 psi.
Neglect friction.
600 lb
