السؤال
Transcribed Image Text:

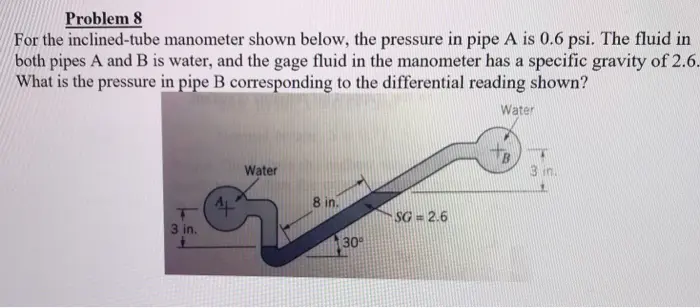

Problem 8
For the inclined-tube manometer shown below, the pressure in pipe A is 0.6 psi. The fluid in
both pipes A and B is water, and the gage fluid in the manometer has a specific gravity of 2.6.
What is the pressure in pipe B corresponding to the differential reading shown?
Water
T
3 in.
土
4
Water
3 in.
8 in.
SG=2.6
30°
