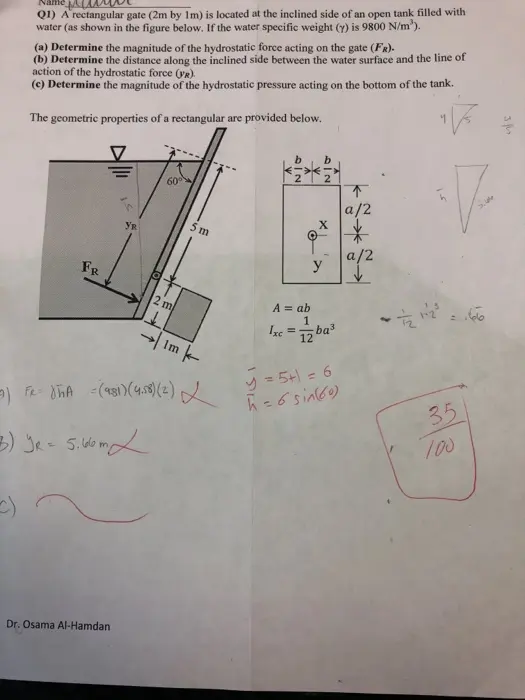

Name L Q1) A rectangular gate (2m by 1m) is located at the inclined side of an open tank filled with water (as shown in the figure below. If the water specific weight (y) is 9800 N/m³). (a) Determine the magnitude of the hydrostatic force acting on the gate (FR). (b) Determine the distance along the inclined side between the water surface and the line of action of the hydrostatic force (VR) (c) Determine the magnitude of the hydrostatic pressure acting on the bottom of the tank. The geometric properties of a rectangular are provided below. YR 60° b b NIO 2 2 ↑ a/2 X 5 m a/2 y 1½ 1-2 = .66 FR 2 m Imk 9) FR= JHA = (981) (4.8) (2) A = ab 1 Ixc = 12 ba³ y = 5+) = 6 h=6 sin(60) 3) Ye=5.66m Dr. Osama Al-Hamdan 35 100
