السؤال
Transcribed Image Text:

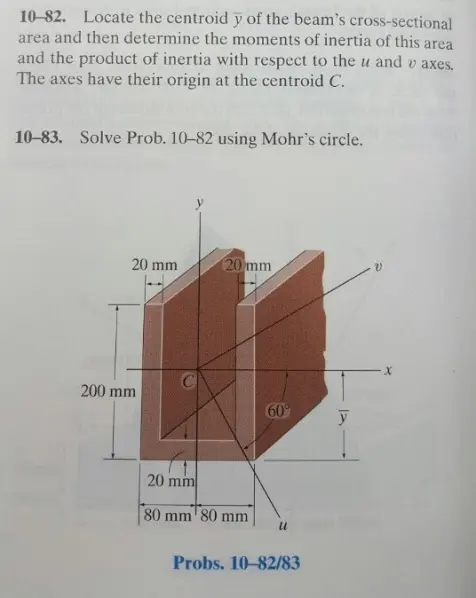

10-82. Locate the centroid y of the beam's cross-sectional
area and then determine the moments of inertia of this area
and the product of inertia with respect to the u and v axes.
The axes have their origin at the centroid C.
10-83. Solve Prob. 10-82 using Mohr's circle.
20 mm
20 mm
200 mm
60°
y
20 mm
80 mm 80 mm
u
Probs. 10-82/83
