السؤال

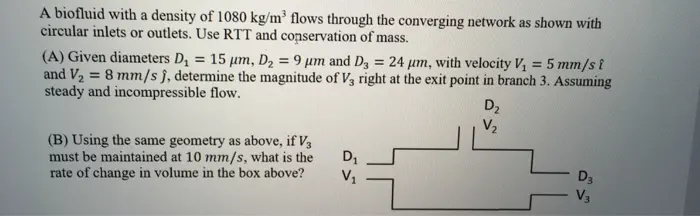

Transcribed Image Text:
A biofluid with a density of 1080 kg/m³ flows through the converging network as shown with
circular inlets or outlets. Use RTT and conservation of mass.
(A) Given diameters D₁ = 15 μm, D₂ = 9 μm and D3 = 24 μm, with velocity V₁ = 5 mm/si
and V₂
= 8 mm/s j, determine the magnitude of V3 right at the exit point in branch 3. Assuming
steady and incompressible flow.
(B) Using the same geometry as above, if V3
must be maintained at 10 mm/s, what is the
rate of change in volume in the box above?
D1
V₁
D₂
V₂
D3
V3
