السؤال
Transcribed Image Text:

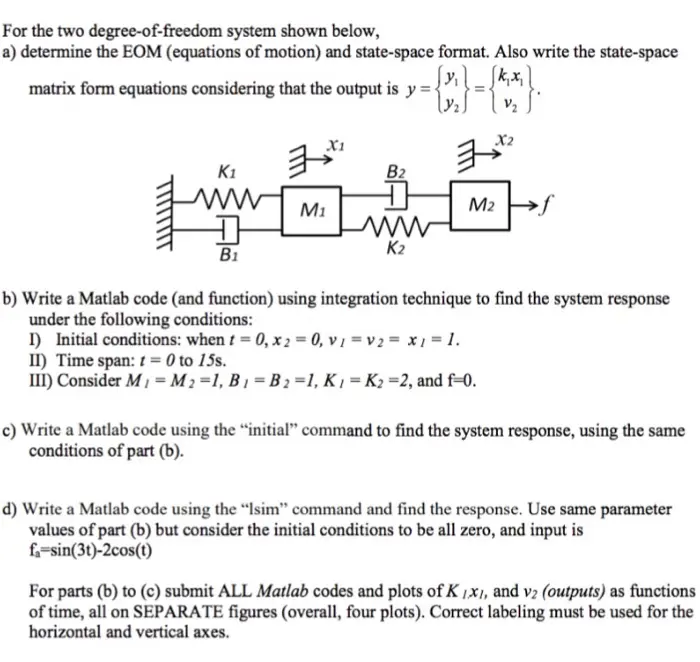

For the two degree-of-freedom system shown below,
a) determine the EOM (equations of motion) and state-space format. Also write the state-space
matrix form equations considering that the output is y=4
X1
V₂
K1
B2
M1
M2 f
ww
K2
B1
b) Write a Matlab code (and function) using integration technique to find the system response
under the following conditions:
I) Initial conditions: when t = 0, x 2 = 0, v=v2=x1=1.
II) Time span: t = 0 to 15s.
III) Consider M, M2=1, B1-B2=1, K1=K2=2, and f=0.
c) Write a Matlab code using the "initial" command to find the system response, using the same
conditions of part (b).
d) Write a Matlab code using the "Isim" command and find the response. Use same parameter
values of part (b) but consider the initial conditions to be all zero, and input is
fa-sin(3t)-2cos(t)
For parts (b) to (c) submit ALL Matlab codes and plots of K 1x1, and v2 (outputs) as functions
of time, all on SEPARATE figures (overall, four plots). Correct labeling must be used for the
horizontal and vertical axes.
