السؤال

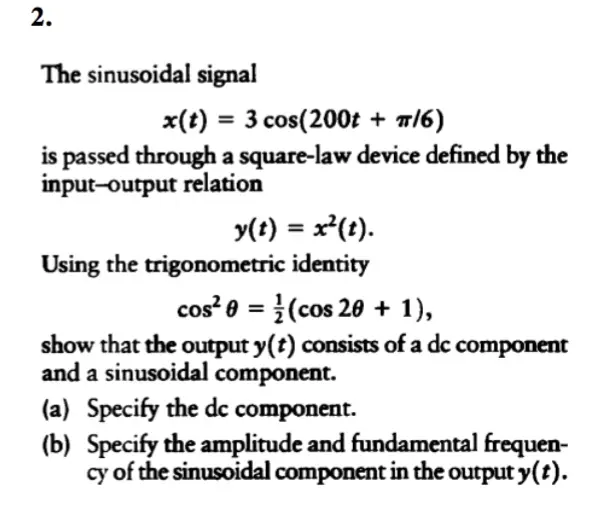

Transcribed Image Text:
2.
The sinusoidal signal
x(t) = 3 cos(200t + π/6)
is passed through a square-law device defined by the
input-output relation
y(t) = x²(t).
Using the trigonometric identity
cos² = (cos 20+ 1),
show that the output y(t) consists of a dc component
and a sinusoidal component.
(a) Specify the dc component.
(b) Specify the amplitude and fundamental frequen-
cy of the sinusoidal component in the output y(t).
