السؤال
Transcribed Image Text:

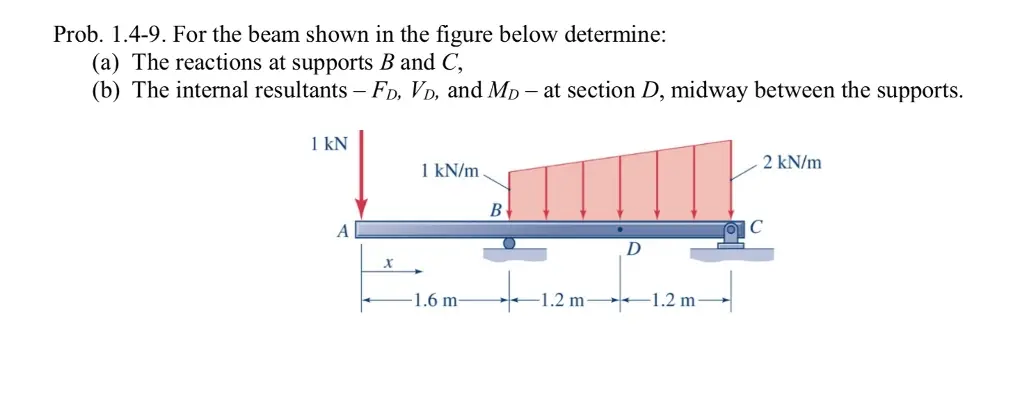

Prob. 1.4-9. For the beam shown in the figure below determine:
(a) The reactions at supports B and C,
(b) The internal resultants - FD, VD, and MD - at section D, midway between the supports.
1 kN
A
1 kN/m
B
D
1.6 m
1.2 m 1.2 m.
2 kN/m
