السؤال
Transcribed Image Text:

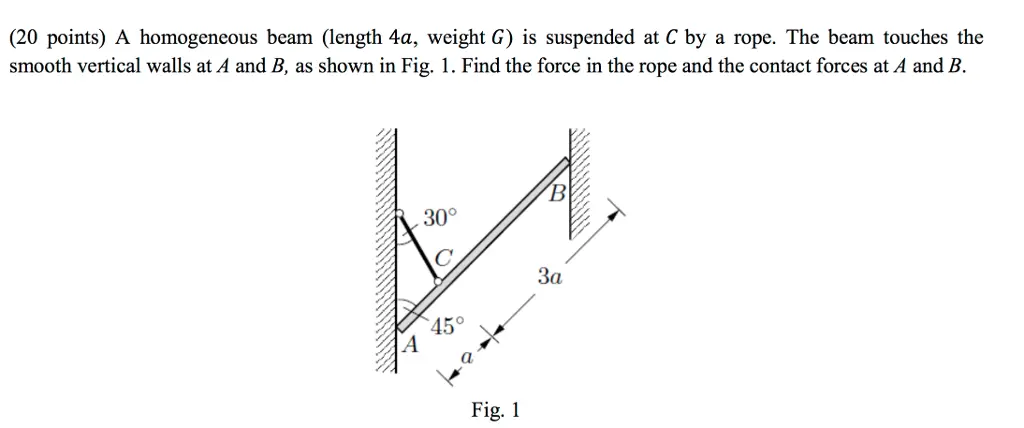

(20 points) A homogeneous beam (length 4a, weight G) is suspended at C by a rope. The beam touches the
smooth vertical walls at A and B, as shown in Fig. 1. Find the force in the rope and the contact forces at A and B.
30°
3a
45°
A
Fig. 1
