السؤال

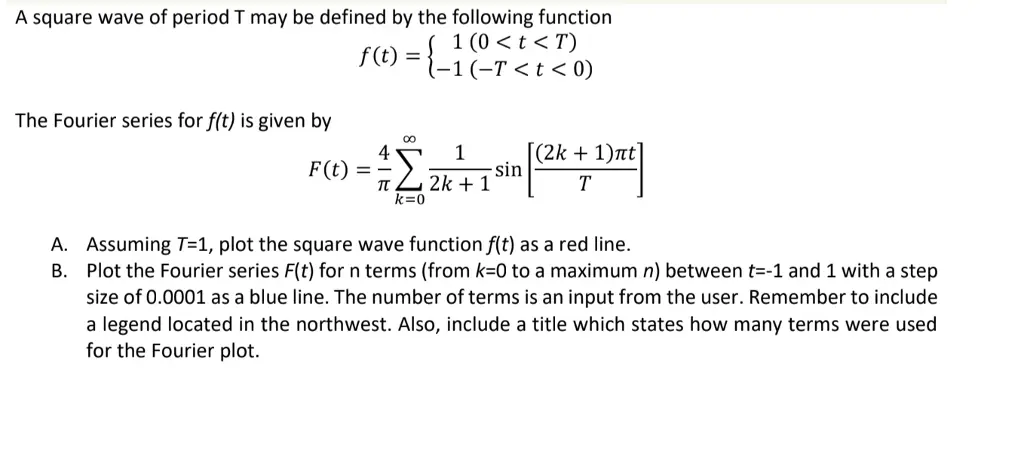

Transcribed Image Text:
A square wave of period T may be defined by the following function
1 (0 <t<T)
f(t) = {-1 (-T<t<0)
The Fourier series for f(t) is given by
F(t) ==
4
00
1
in [(2k + 1)πt]
=Σ 2k + 1°
k=0
T
A. Assuming T=1, plot the square wave function f(t) as a red line.
B. Plot the Fourier series F(t) for n terms (from k=0 to a maximum n) between t=-1 and 1 with a step
size of 0.0001 as a blue line. The number of terms is an input from the user. Remember to include
a legend located in the northwest. Also, include a title which states how many terms were used
for the Fourier plot.
