السؤال

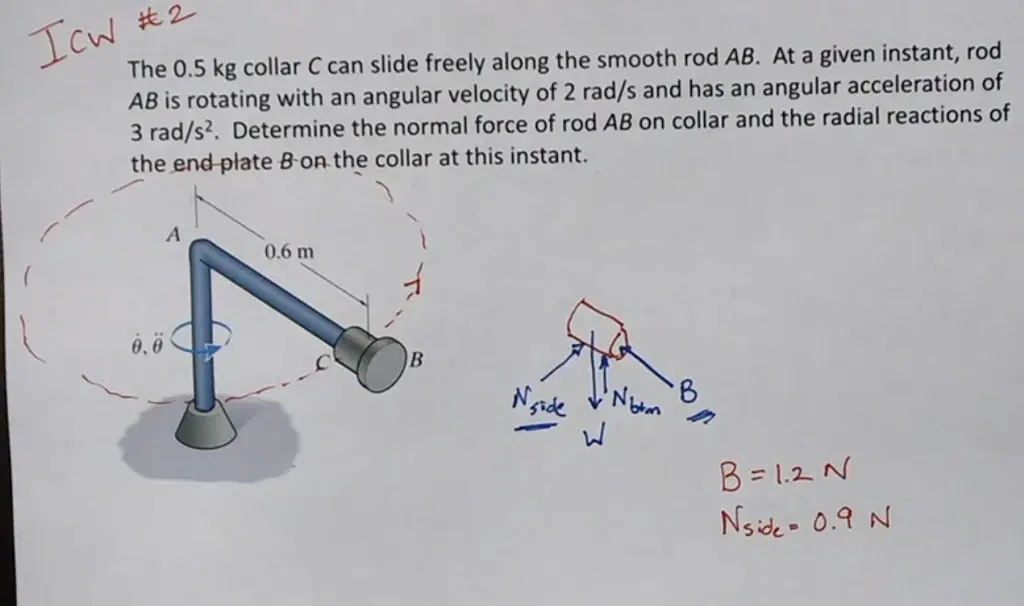

Transcribed Image Text:
Icw
#2
The 0.5 kg collar C can slide freely along the smooth rod AB. At a given instant, rod
AB is rotating with an angular velocity of 2 rad/s and has an angular acceleration of
3 rad/s². Determine the normal force of rod AB on collar and the radial reactions of
the end plate B on the collar at this instant.
A
0.6 m
0,0
B
Nside
ฟ
B
B=1.2 N
Nside - 0.9 N
