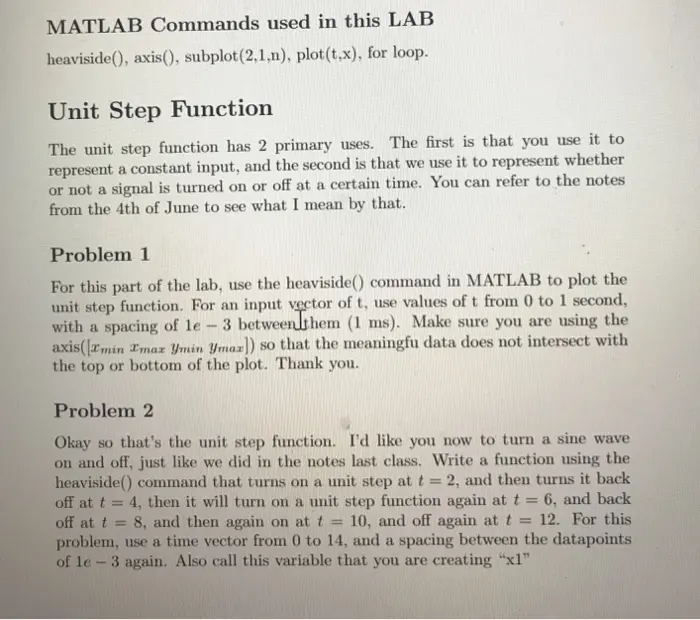

Transcribed Image Text:
MATLAB Commands used in this LAB
heaviside(), axis(), subplot (2,1,n), plot(t,x), for loop.
Unit Step Function
The unit step function has 2 primary uses. The first is that you use it to
represent a constant input, and the second is that we use it to represent whether
or not a signal is turned on or off at a certain time. You can refer to the notes
from the 4th of June to see what I mean by that.
Problem 1
For this part of the lab, use the heaviside() command in MATLAB to plot the
unit step function. For an input vector of t, use values of t from 0 to 1 second,
with a spacing of le - 3 between them (1 ms). Make sure you are using the
axis(min Emax Ymin Ymaz]) so that the meaningfu data does not intersect with
the top or bottom of the plot. Thank you.
Problem 2
Okay so that's the unit step function. I'd like you now to turn a sine wave
on and off, just like we did in the notes last class. Write a function using the
heaviside() command that turns on a unit step at t = 2, and then turns it back
off at t = 4, then it will turn on a unit step function again at t = 6, and back
off at t=8, and then again on at t 10, and off again at t = 12. For this
problem, use a time vector from 0 to 14, and a spacing between the datapoints
3 again. Also call this variable that you are creating "x1"
of le
-
=
