السؤال
Transcribed Image Text:
har Equilibrium Analysis

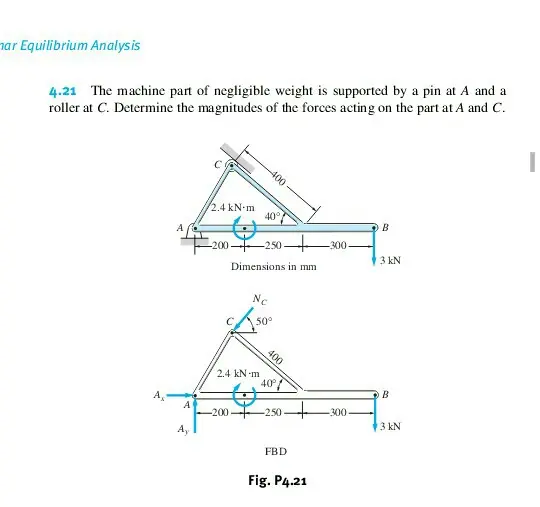

4.21 The machine part of negligible weight is supported by a pin at A and a
roller at C. Determine the magnitudes of the forces acting on the part at A and C.
-
2.4 kN·m
-400
40°
200-250
Dimensions in mm
Nc
50°
400
2.4 kN·m
40°
B
-300-
3 kN
B
A
-200
-250+
300-
Ay
3 kN
FBD
Fig. P4.21
