السؤال

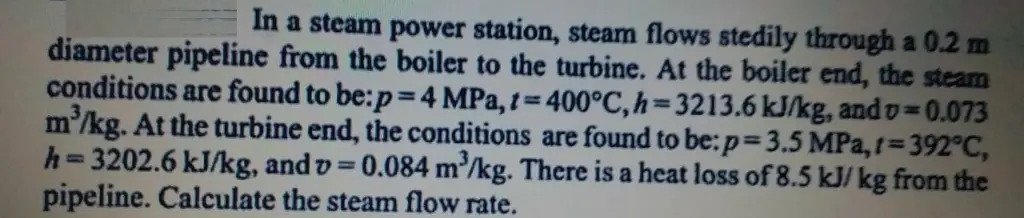

Transcribed Image Text:
In a steam power station, steam flows stedily through a 0.2 m
diameter pipeline from the boiler to the turbine. At the boiler end, the steam
conditions are found to be: p=4 MPa, t=400°C, h=3213.6 kJ/kg, and v=0.073
m³/kg. At the turbine end, the conditions are found to be:p=3.5 MPa,1=392°C,
h=3202.6 kJ/kg, and v = 0.084 m³/kg. There is a heat loss of 8.5 kJ/kg from the
pipeline. Calculate the steam flow rate.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
