السؤال
Transcribed Image Text:

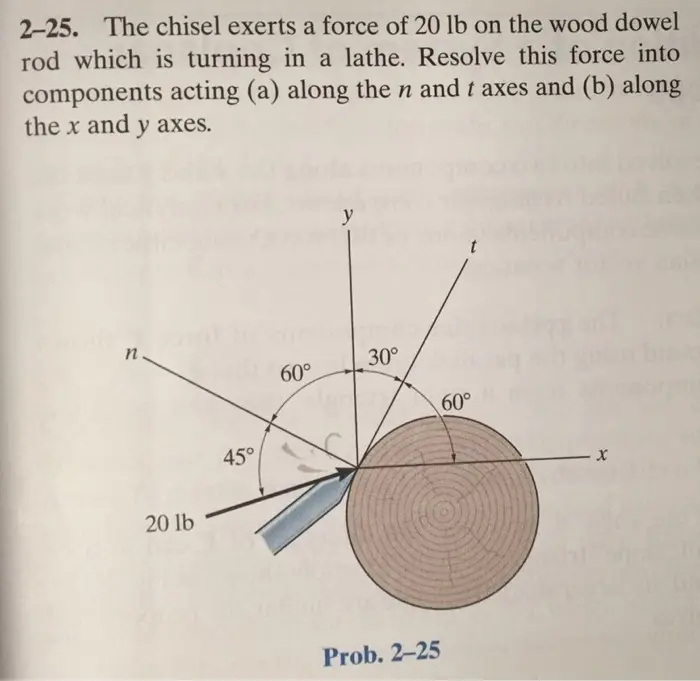

2-25. The chisel exerts a force of 20 lb on the wood dowel
rod which is turning in a lathe. Resolve this force into
components acting (a) along the n and taxes and (b) along
the x and y axes.
y
n
30°
60°
60°
20 lb
45°
Prob. 2-25
