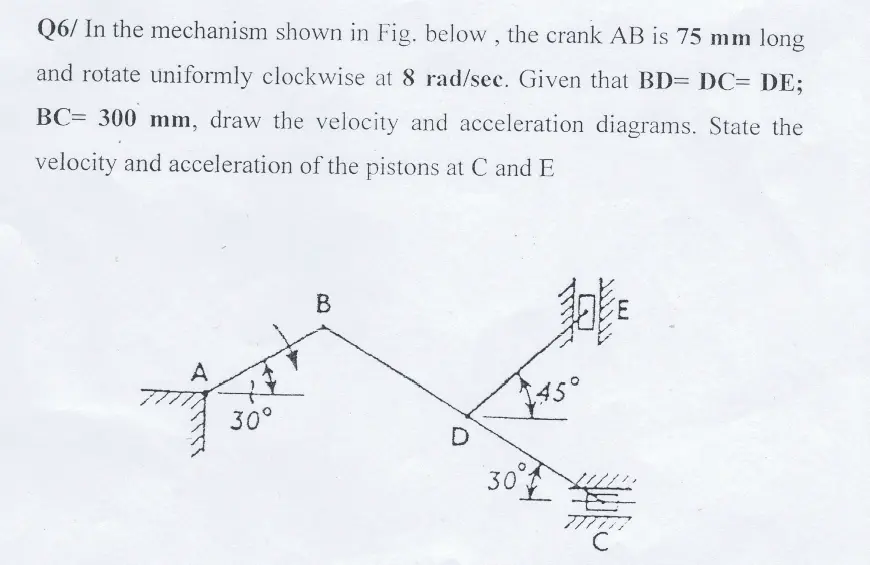

Q6/ In the mechanism shown in Fig. below, the crank AB is 75 mm long and rotate uniformly clockwise at 8 rad/sec. Given that BD= DC= DE; BC= 300 mm, draw the velocity and acceleration diagrams. State the velocity and acceleration of the pistons at C and E A B 30° D 30° 45° 777777 C
