السؤال
Transcribed Image Text:

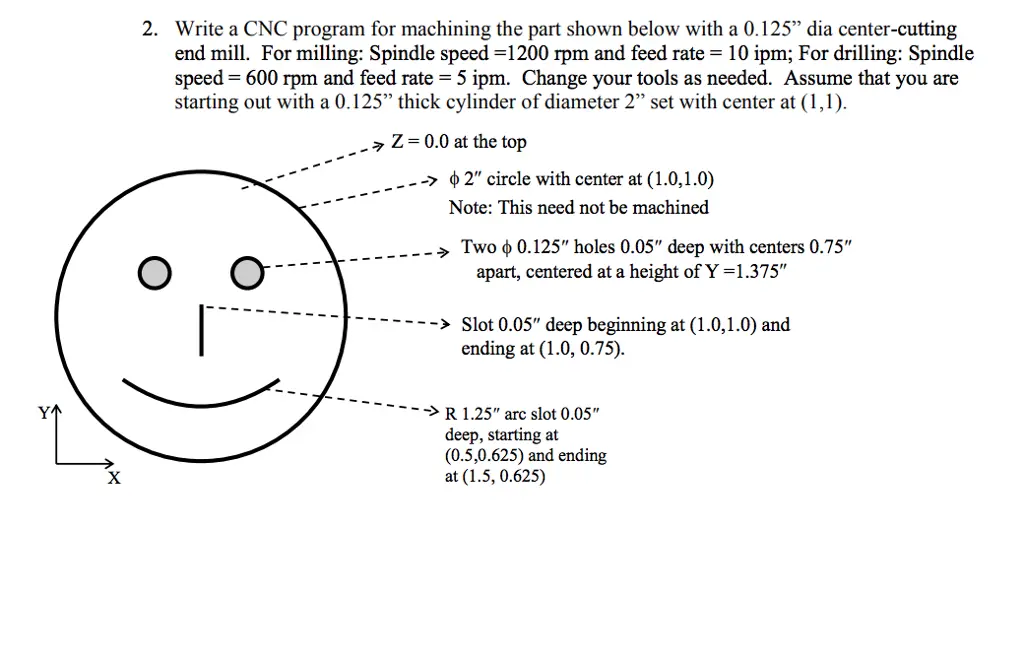

2. Write a CNC program for machining the part shown below with a 0.125" dia center-cutting
end mill. For milling: Spindle speed =1200 rpm and feed rate = 10 ipm; For drilling: Spindle
speed=600 rpm and feed rate = 5 ipm. Change your tools as needed. Assume that you are
starting out with a 0.125" thick cylinder of diameter 2" set with center at (1,1).
Z= 0.0 at the top
2" circle with center at (1.0,1.0)
Note: This need not be machined
Two 0.125" holes 0.05" deep with centers 0.75"
apart, centered at a height of Y=1.375"
Slot 0.05" deep beginning at (1.0,1.0) and
ending at (1.0, 0.75).
R 1.25" arc slot 0.05"
deep, starting at
(0.5,0.625) and ending
at (1.5, 0.625)
