السؤال
Transcribed Image Text:

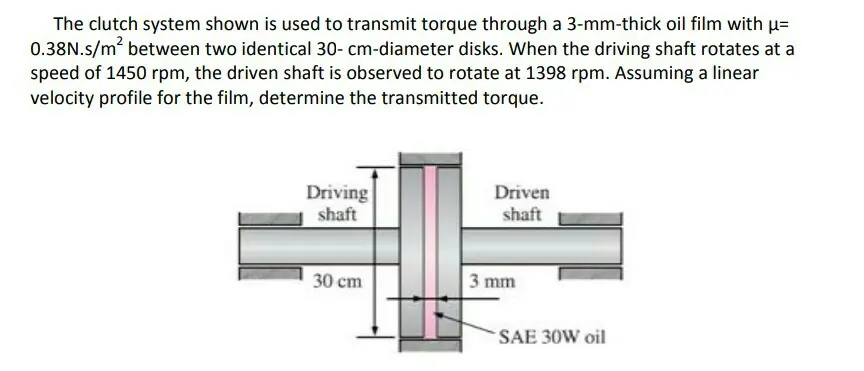

The clutch system shown is used to transmit torque through a 3-mm-thick oil film with μ=
0.38N.s/m² between two identical 30-cm-diameter disks. When the driving shaft rotates at a
speed of 1450 rpm, the driven shaft is observed to rotate at 1398 rpm. Assuming a linear
velocity profile for the film, determine the transmitted torque.
Driving
shaft
Driven
shaft
30 cm
3 mm
SAE 30W oil
