السؤال

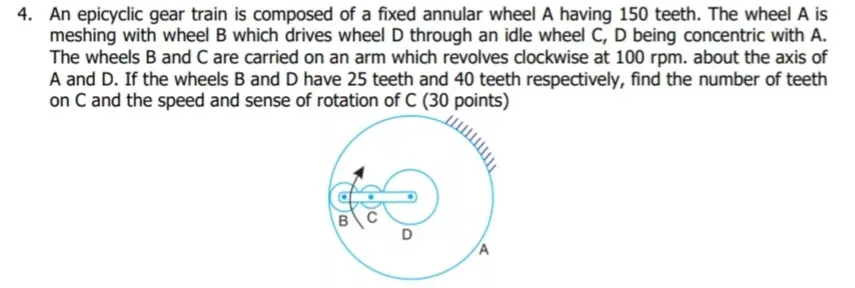

Transcribed Image Text:
4. An epicyclic gear train is composed of a fixed annular wheel A having 150 teeth. The wheel A is
meshing with wheel B which drives wheel D through an idle wheel C, D being concentric with A.
The wheels B and C are carried on an arm which revolves clockwise at 100 rpm. about the axis of
A and D. If the wheels B and D have 25 teeth and 40 teeth respectively, find the number of teeth
on C and the speed and sense of rotation of C (30 points)
D
A
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
