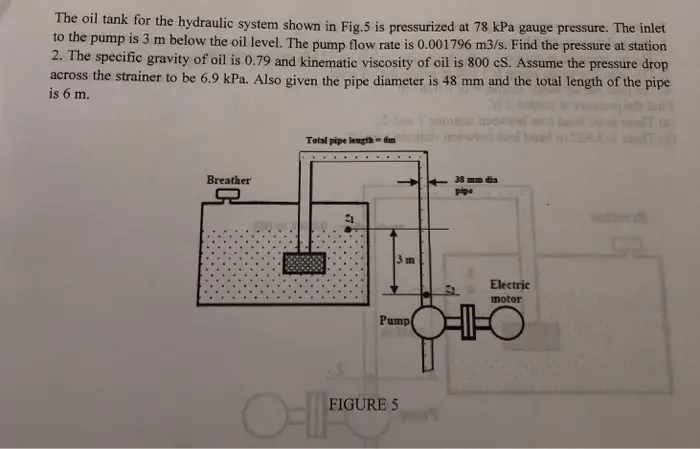

The oil tank for the hydraulic system shown in Fig.5 is pressurized at 78 kPa gauge pressure. The inlet to the pump is 3 m below the oil level. The pump flow rate is 0.001796 m3/s. Find the pressure at station 2. The specific gravity of oil is 0.79 and kinematic viscosity of oil is 800 cS. Assume the pressure drop across the strainer to be 6.9 kPa. Also given the pipe diameter is 48 mm and the total length of the pipe is 6 m. Breather Total pipe length-6m ate news ecol basd -1 38 mm dia pipe 3 m Pump Electric motor ню FIGURE 5 O-FI
