السؤال
Transcribed Image Text:

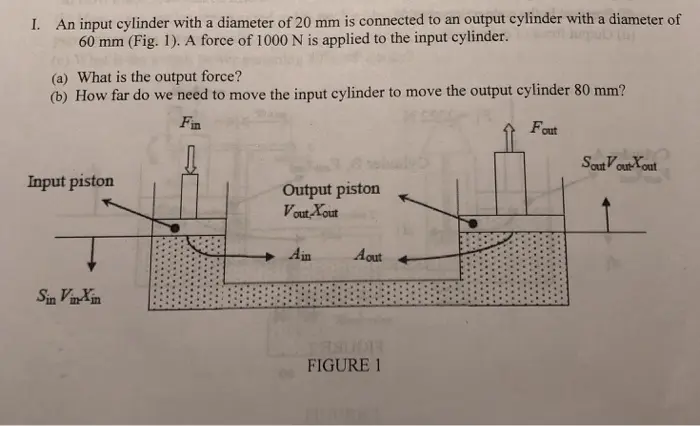

I. An input cylinder with a diameter of 20 mm is connected to an output cylinder with a diameter of
60 mm (Fig. 1). A force of 1000 N is applied to the input cylinder.
(a) What is the output force?
(b) How far do we need to move the input cylinder to move the output cylinder 80 mm?
Fin
Fout
Input piston
Output piston
Vout. Xout
Ain
Aout
Sin VinXin
FIGURE 1
FIGURE 3
Sout our Yout
