السؤال

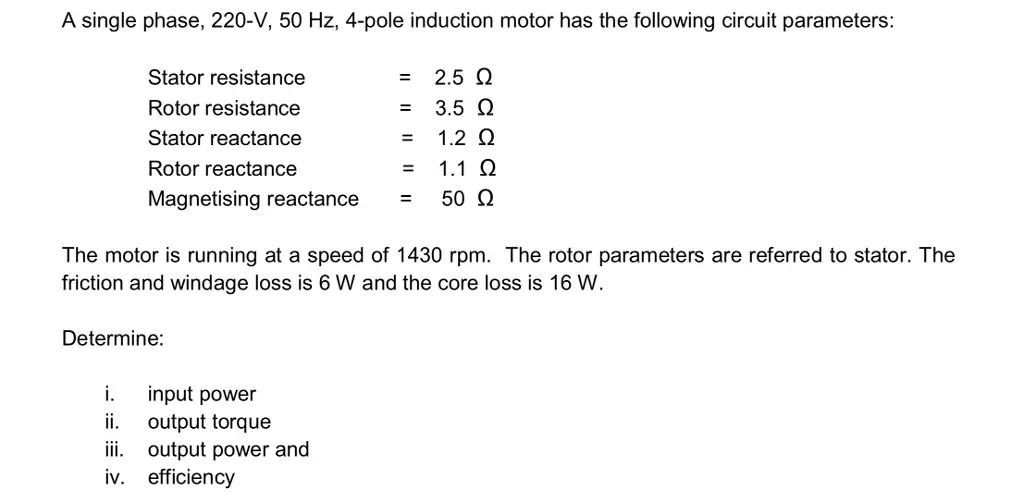

Transcribed Image Text:
A single phase, 220-V, 50 Hz, 4-pole induction motor has the following circuit parameters:
Stator resistance
=
2.5 Ω
Rotor resistance
=
3.5 Ω
Stator reactance
=
1.2 Ω
Rotor reactance
=
1.1 Ω
Magnetising reactance
=
50 Ω
The motor is running at a speed of 1430 rpm. The rotor parameters are referred to stator. The
friction and windage loss is 6 W and the core loss is 16 W.
Determine:
i.
input power
ii. output torque
iii. output power and
iv.
efficiency
