السؤال

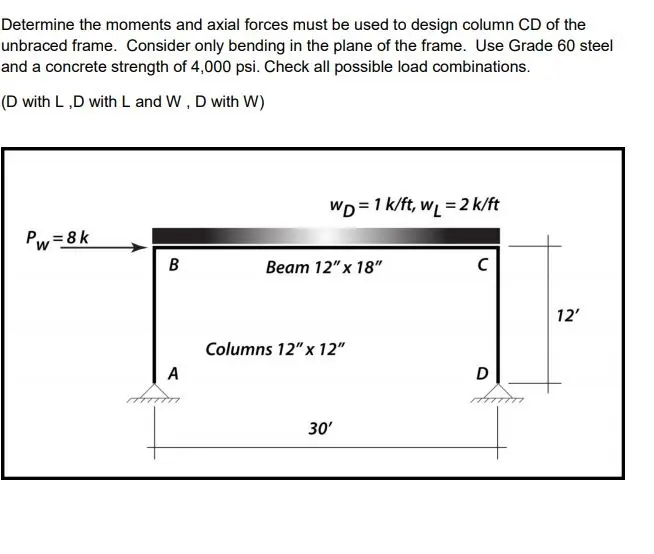

Transcribed Image Text:
Determine the moments and axial forces must be used to design column CD of the
unbraced frame. Consider only bending in the plane of the frame. Use Grade 60 steel
and a concrete strength of 4,000 psi. Check all possible load combinations.
(D with L,D with L and W, D with W)
Pw=8k
WD=1k/ft, w₁ =2k/ft
B
Beam 12" x 18"
C
A
Columns 12" x 12"
30'
D
12'
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
