السؤال

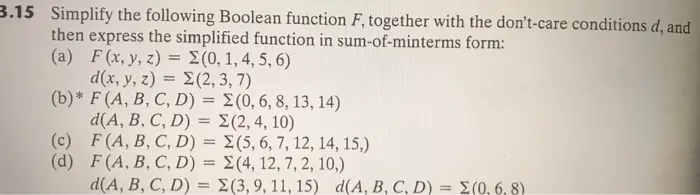

Transcribed Image Text:
3.15 Simplify the following Boolean function F, together with the don't-care conditions d, and
then express the simplified function in sum-of-minterms form:
(a) F(x, y, z) = (0, 1, 4, 5, 6)
d(x, y, z) =Σ(2, 3, 7)
(b) F (A, B, C, D) =
d(A, B, C, D) =
(c) F (A, B, C, D) =
(d) F (A, B, C, D) =
Σ(0, 6, 8, 13, 14)
Σ(2, 4, 10)
Σ(5, 6, 7, 12, 14, 15,)
Σ(4, 12, 7, 2, 10,)
d(A, B, C, D) =Σ(3, 9, 11, 15) d(A, B, C, D) = Σ(0, 6, 8)
