السؤال

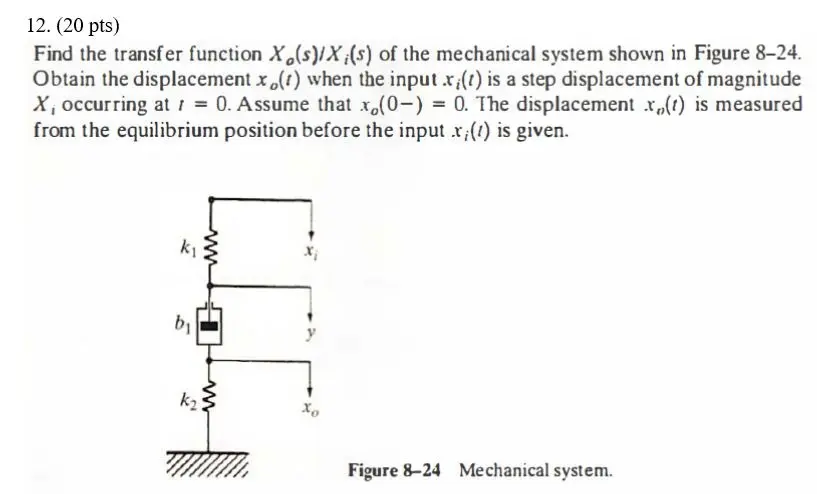

Transcribed Image Text:
12. (20 pts)
Find the transfer function X(s)/X(s) of the mechanical system shown in Figure 8-24.
Obtain the displacement x,(t) when the input .x(t) is a step displacement of magnitude
X, occurring at = 0. Assume that x,(0) = 0. The displacement .x,(t) is measured
from the equilibrium position before the input .x,(/) is given.
k₁
b₁
k₂
www
www
x
Figure 8-24 Mechanical system.
