السؤال
Transcribed Image Text:
Saved

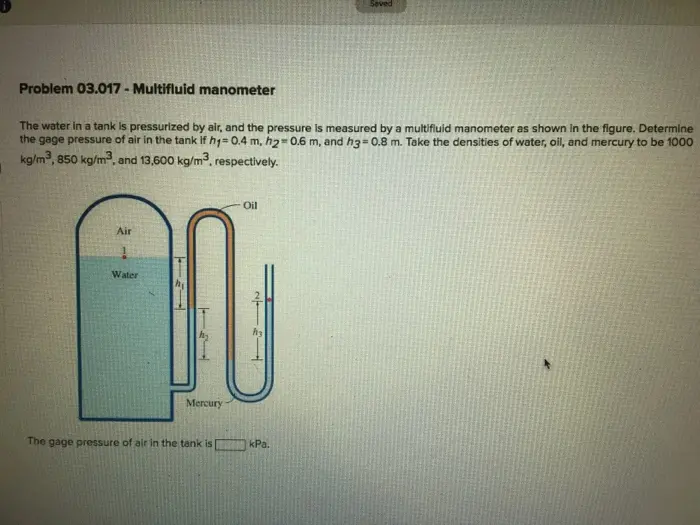

Problem 03.017- Multifluid manometer
The water in a tank is pressurized by air, and the pressure is measured by a multifluid manometer as shown in the figure. Determine
the gage pressure of air in the tank if h1= 0.4 m, h2=0.6 m, and h3 0.8 m. Take the densities of water, oll, and mercury to be 1000
kg/m³, 850 kg/m³, and 13,600 kg/m3, respectively.
Air
!
Water
Oil
hy
h₂
Mercury
The gage pressure of air in the tank is |
kPa.
