Transcribed Image Text:

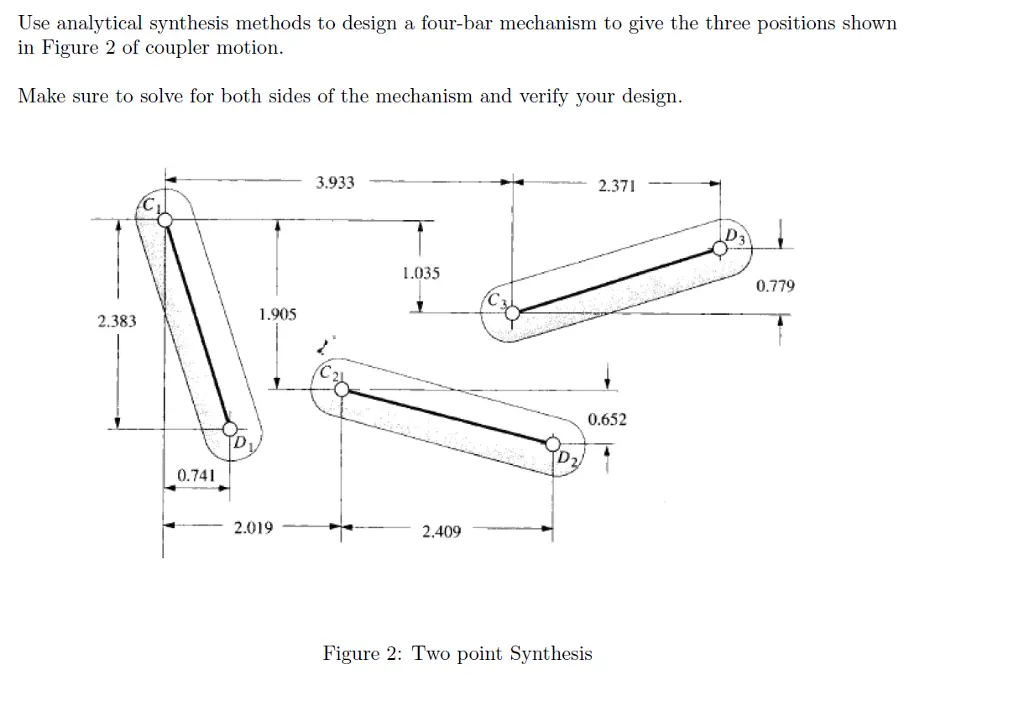

Use analytical synthesis methods to design a four-bar mechanism to give the three positions shown
in Figure 2 of coupler motion.
Make sure to solve for both sides of the mechanism and verify your design.
2.383
0.741
3.933
1.905
1.035
2.019
2.409
2.371
0.652
D2
Figure 2: Two point Synthesis
0.779
