السؤال
Transcribed Image Text:

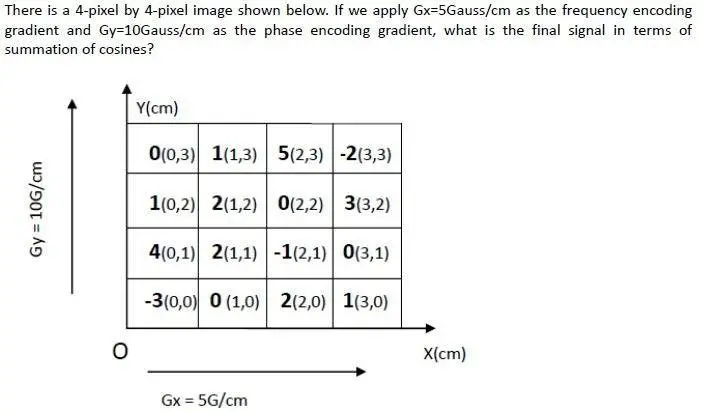

There is a 4-pixel by 4-pixel image shown below. If we apply Gx=5Gauss/cm as the frequency encoding
gradient and Gy-10Gauss/cm as the phase encoding gradient, what is the final signal in terms of
summation of cosines?
Gy = 10G/cm
Y(cm)
0(0,3) 1(1,3) 5(2,3) -2(3,3)
1(0,2) 2(1,2) 0(2,2) 3(3,2)
4(0,1) 2(1,1) -1(2,1) 0(3,1)
-3(0,0) 0 (1,0) 2(2,0) 1(3,0)
Gx = 5G/cm
X(cm)
