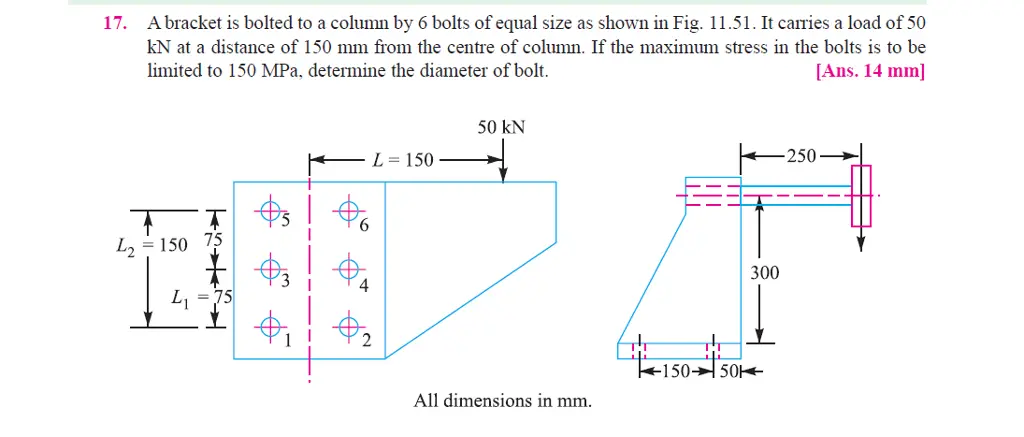

17. A bracket is bolted to a column by 6 bolts of equal size as shown in Fig. 11.51. It carries a load of 50 KN at a distance of 150 mm from the centre of column. If the maximum stress in the bolts is to be limited to 150 MPa, determine the diameter of bolt. L= 150 50 kN [Ans. 14 mm] -250- L₂ = 150 Lu $ $ $ 02 300 ←1501501← All dimensions in mm.
