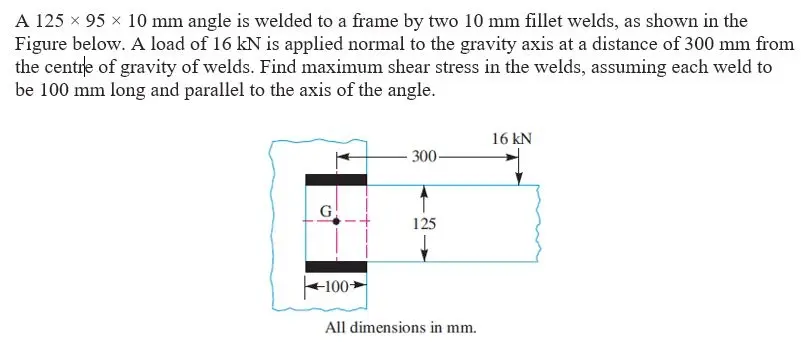

A 125 × 95 × 10 mm angle is welded to a frame by two 10 mm fillet welds, as shown in the Figure below. A load of 16 kN is applied normal to the gravity axis at a distance of 300 mm from the centre of gravity of welds. Find maximum shear stress in the welds, assuming each weld to be 100 mm long and parallel to the axis of the angle. 16kN 300- G 125 100+ All dimensions in mm.
