السؤال

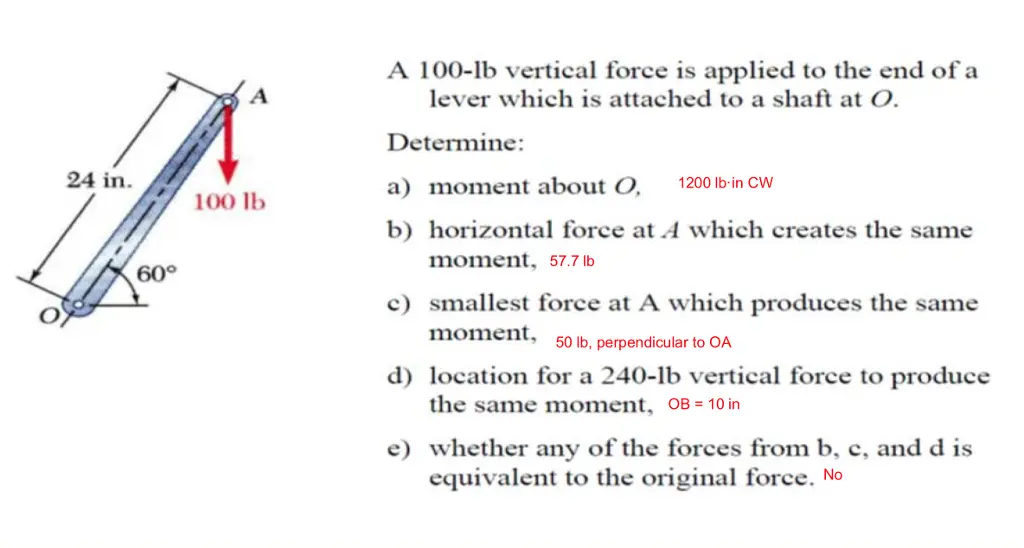

Transcribed Image Text:
24 in.
100 lb
60°
A 100-lb vertical force is applied to the end of a
lever which is attached to a shaft at O.
Determine:
a) moment about O,
1200 lb-in CW
b) horizontal force at A which creates the same
moment, 57.7 lb
c) smallest force at A which produces the same
moment,
50 lb, perpendicular to OA
d) location for a 240-lb vertical force to produce
the same moment, OB = 10 in
e) whether any of the forces from b, c, and d is
equivalent to the original force. No
