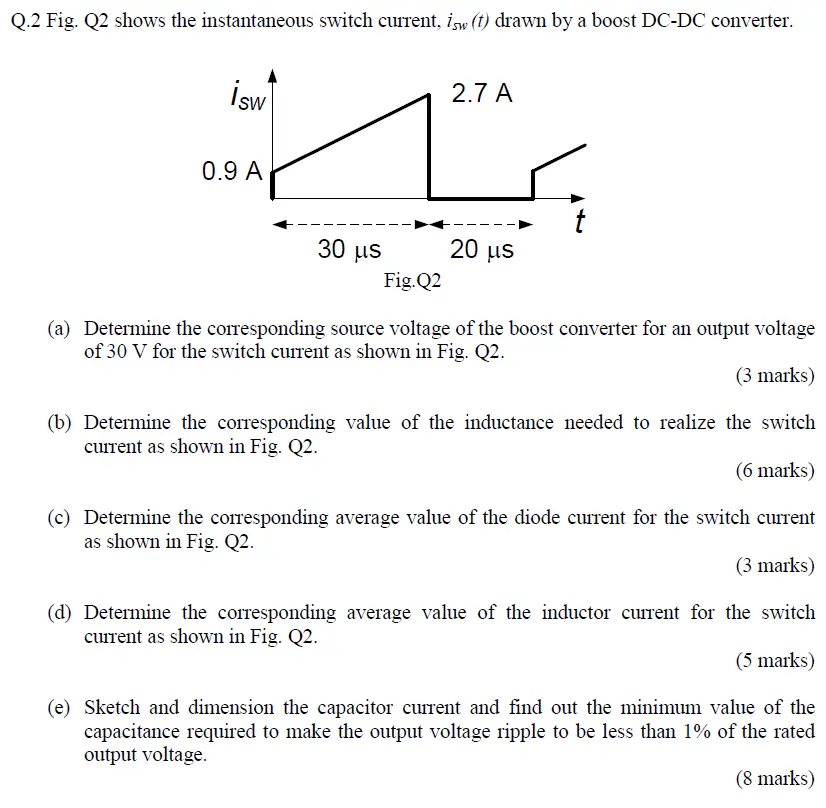

Q.2 Fig. Q2 shows the instantaneous switch current, isw (t) drawn by a boost DC-DC converter. isw 2.7 A 0.9 A 30 μs 20 μs Fig.Q2 (a) Determine the corresponding source voltage of the boost converter for an output voltage of 30 V for the switch current as shown in Fig. Q2. (3 marks) (b) Determine the corresponding value of the inductance needed to realize the switch current as shown in Fig. Q2. (6 marks) (c) Determine the corresponding average value of the diode current for the switch current as shown in Fig. Q2. (3 marks) (d) Determine the corresponding average value of the inductor current for the switch current as shown in Fig. Q2. (5 marks) (e) Sketch and dimension the capacitor current and find out the minimum value of the capacitance required to make the output voltage ripple to be less than 1% of the rated output voltage. (8 marks)
