السؤال
Transcribed Image Text:

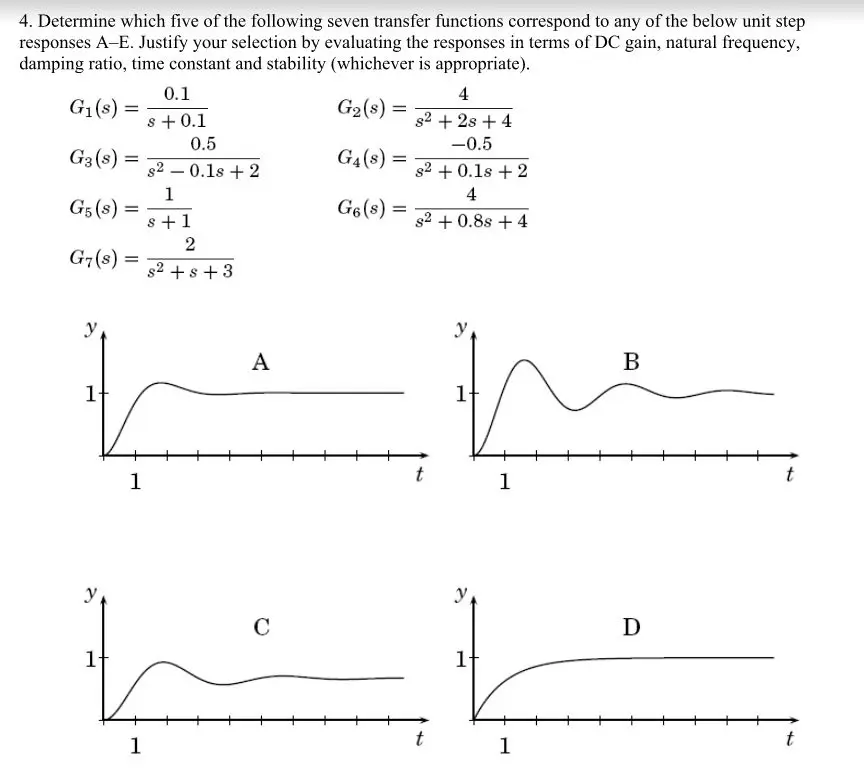

4. Determine which five of the following seven transfer functions correspond to any of the below unit step
responses A-E. Justify your selection by evaluating the responses in terms of DC gain, natural frequency,
damping ratio, time constant and stability (whichever is appropriate).
G1(s)
=
0.1
s+ 0.1
G2(s) =
4
82 +28+4
0.5
-0.5
G3(s) =
G4(8)=
$2 -0.18+2
82 +0.18 +2
1
4
G5 (8) =
G6(s) =
S+1
2
s² + 0.88 +4
G7 (8)=
=
s² + s +3
y
1
y
1
A
C
1
1
t
y
1-
y
1
1
t
1
B
D
t
t
