السؤال
Transcribed Image Text:

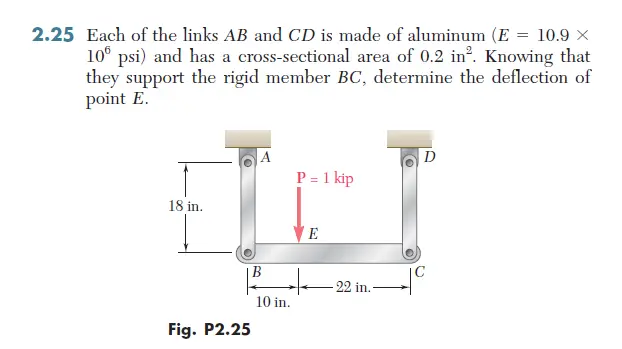

2.25 Each of the links AB and CD is made of aluminum (E = 10.9 ×
10 psi) and has a cross-sectional area of 0.2 in². Knowing that
they support the rigid member BC, determine the deflection of
point E.
A
D
P = 1 kip
18 in.
E
Fig. P2.25
10 in.
22 in.-
