السؤال
Transcribed Image Text:
in
is
er-
he
no, abnogob is vd 1
T 001-1

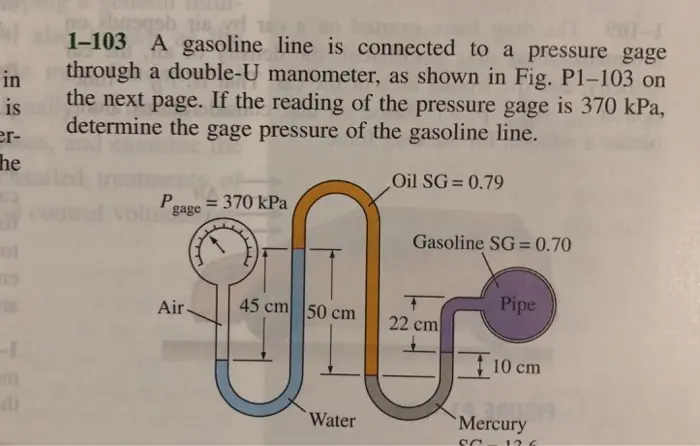

1-103 A gasoline line is connected to a pressure gage
through a double-U manometer, as shown in Fig. P1-103 on
all the next page. If the reading of the pressure gage is 370 kPa,
determine the gage pressure of the gasoline line.
P = 370 kPa
olu gage
Oil SG= 0.79
Gasoline SG=0.70
A
Air
45 cm 50 cm
22 cm
-I
di
Water
Pipe
10 cm
Mercury
SC
126
