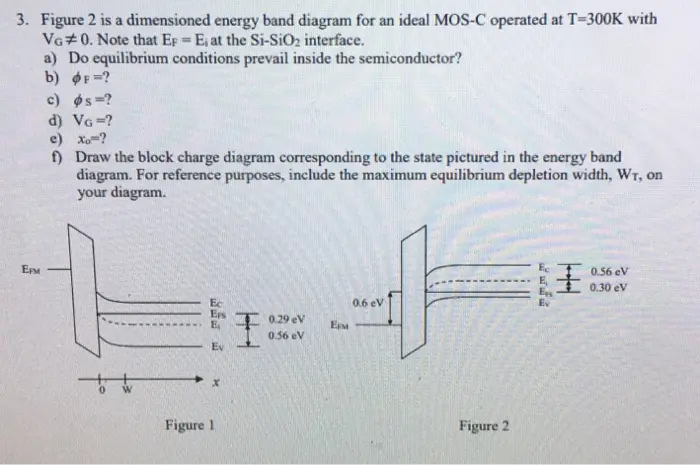

3. Figure 2 is a dimensioned energy band diagram for an ideal MOS-C operated at T=300K with VG 0. Note that Ep E, at the Si-SiO2 interface. a) Do equilibrium conditions prevail inside the semiconductor? b) c) F=? s=? d) VG =? e) x=? f) Draw the block charge diagram corresponding to the state pictured in the energy band diagram. For reference purposes, include the maximum equilibrium depletion width, WT, on your diagram. Ерм Ec Eps 0.6 eV 0.29 eV EM 0.56 eV Ev Figure 1 Figure 2 www 0.56 eV 0.30 eV
