السؤال
Transcribed Image Text:

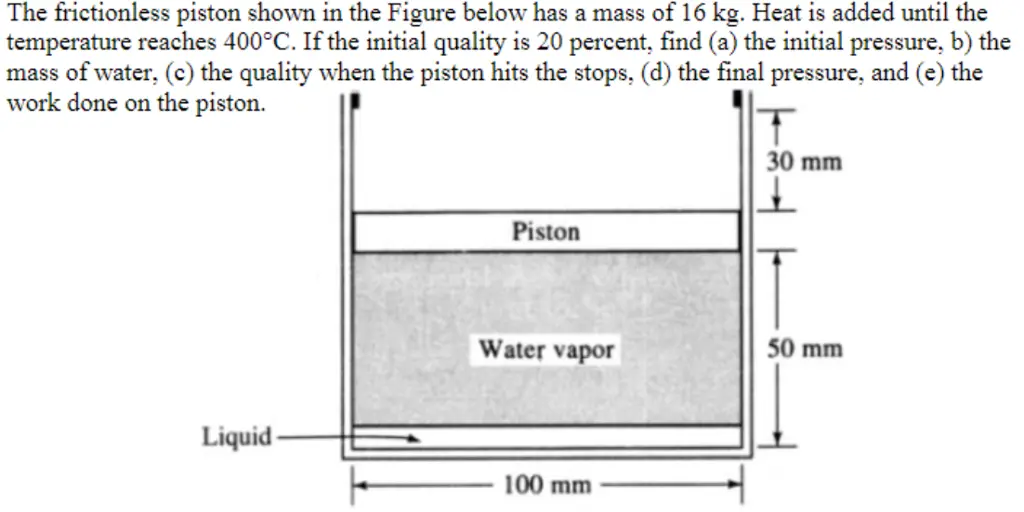

The frictionless piston shown in the Figure below has a mass of 16 kg. Heat is added until the
temperature reaches 400°C. If the initial quality is 20 percent, find (a) the initial pressure, b) the
mass of water, (c) the quality when the piston hits the stops, (d) the final pressure, and (e) the
work done on the piston.
Liquid
Piston
30 mm
50 mm
Water vapor
100 mm
