السؤال
Transcribed Image Text:
b) the
stress.

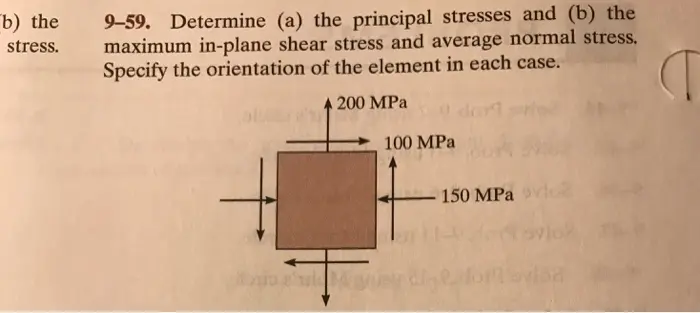

9-59. Determine (a) the principal stresses and (b) the
maximum in-plane shear stress and average normal stress.
Specify the orientation of the element in each case.
200 MPa
0 dar
100 MPa
150 MPa 2
T
