السؤال
Transcribed Image Text:

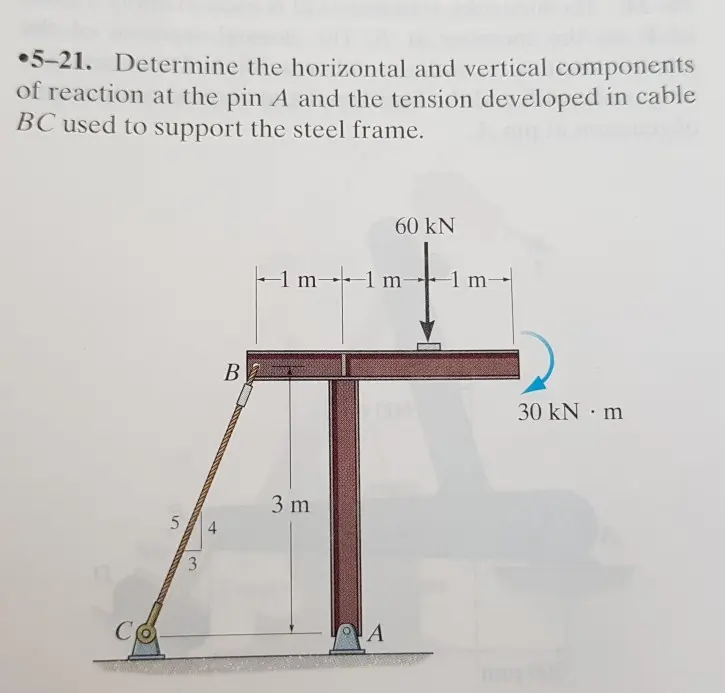

⚫5-21. Determine the horizontal and vertical components
of reaction at the pin A and the tension developed in cable
BC used to support the steel frame.
C
5
4
3
B
60 kN
1 m 1 m-
m
3 m
000
30 kN m
A
mm 005
