السؤال

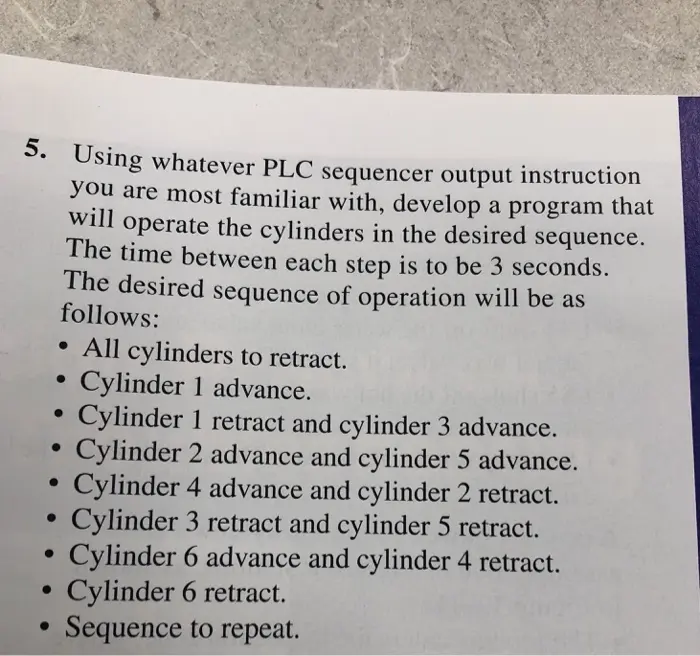

Transcribed Image Text:
5. Using whatever PLC sequencer output instruction
you are most familiar with, develop a program that
will operate the cylinders in the desired sequence.
The time between each step is to be 3 seconds.
The desired sequence of operation will be as
follows:
• All cylinders to retract.
•
•
•
•
•
Cylinder 1 advance.
Cylinder 1 retract and cylinder 3 advance.
Cylinder 2 advance and cylinder 5 advance.
Cylinder 4 advance and cylinder 2 retract.
• Cylinder 3 retract and cylinder 5 retract.
Cylinder 6 advance and cylinder 4 retract.
Cylinder 6 retract.
Sequence to repeat.
