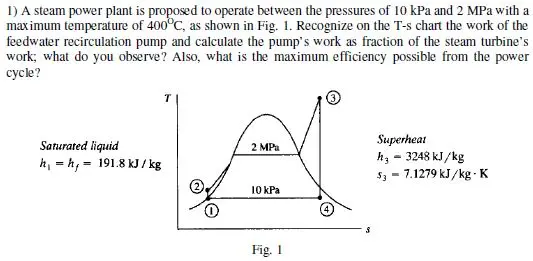

1) A steam power plant is proposed to operate between the pressures of 10 kPa and 2 MPa with a maximum temperature of 400°C, as shown in Fig. 1. Recognize on the T-s chart the work of the feedwater recirculation pump and calculate the pump's work as fraction of the steam turbine's work; what do you observe? Also, what is the maximum efficiency possible from the power cycle? T Saturated liquid h₁ = h₁ = 191.8 kJ/kg 2 MPa 10 kPa Fig. 1 Superheat h3-3248 kJ/kg $3 7.1279 kJ/kg - K -
