السؤال
Transcribed Image Text:

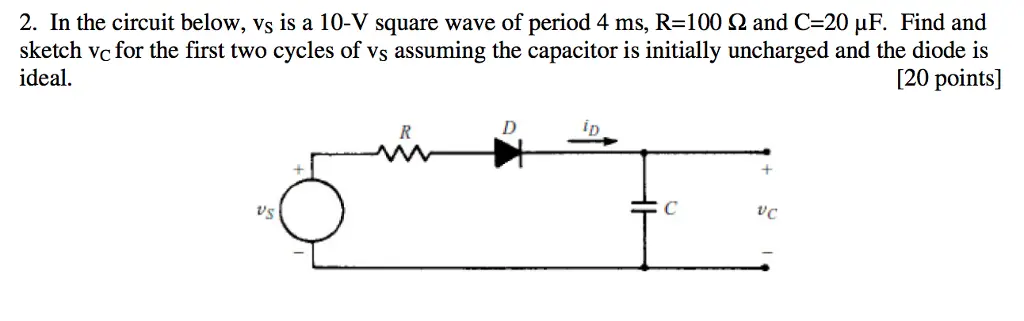

2. In the circuit below, vs is a 10-V square wave of period 4 ms, R=100 2 and C=20 μF. Find and
sketch vc for the first two cycles of vs assuming the capacitor is initially uncharged and the diode is
ideal.
[20 points]
US
D
+
C
VC
