السؤال
Transcribed Image Text:
Question 3

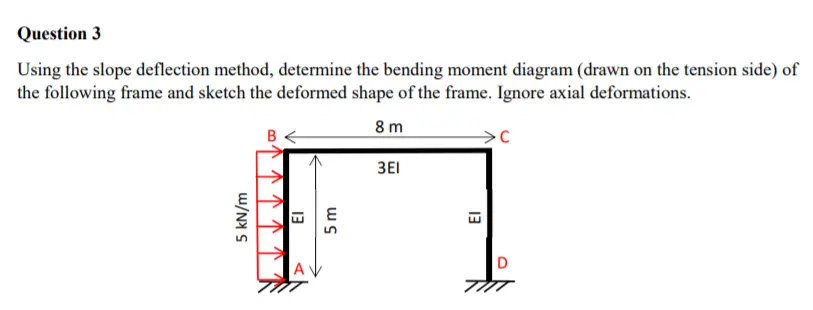

Using the slope deflection method, determine the bending moment diagram (drawn on the tension side) of
the following frame and sketch the deformed shape of the frame. Ignore axial deformations.
B
8m
3EI
5 kN/m
13
5 m
13
D
