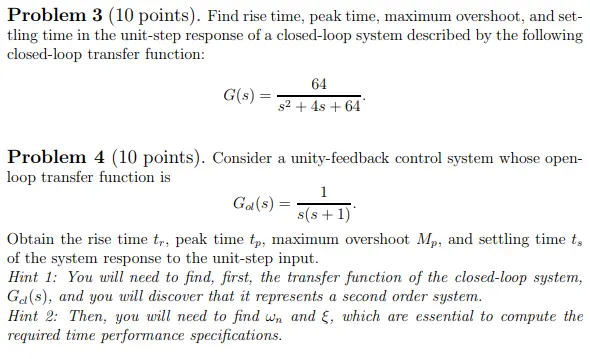

Problem 3 (10 points). Find rise time, peak time, maximum overshoot, and set-
tling time in the unit-step response of a closed-loop system described by the following
closed-loop transfer function:
G(s)
64
s² + 4s + 64
Problem 4 (10 points). Consider a unity-feedback control system whose open-
loop transfer function is
Gal(s):
s(s+1)
Obtain the rise time tr, peak time tp, maximum overshoot Mp, and settling time t
of the system response to the unit-step input.
Hint 1: You will need to find, first, the transfer function of the closed-loop system,
Ga(s), and you will discover that it represents a second order system.
Hint 2: Then, you will need to find wn and E, which are essential to compute the
required time performance specifications.
