السؤال
Transcribed Image Text:

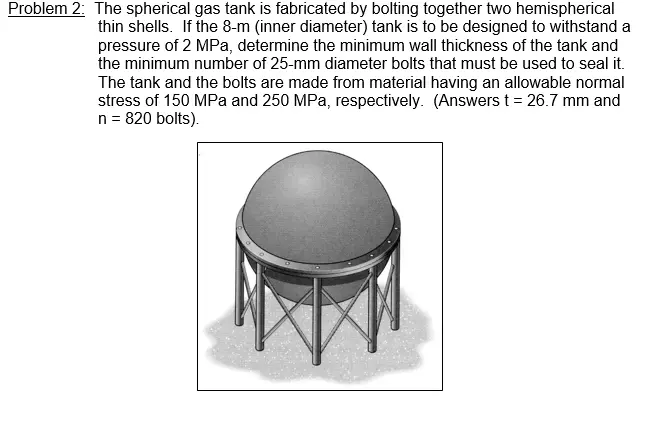

Problem 2: The spherical gas tank is fabricated by bolting together two hemispherical
thin shells. If the 8-m (inner diameter) tank is to be designed to withstand a
pressure of 2 MPa, determine the minimum wall thickness of the tank and
the minimum number of 25-mm diameter bolts that must be used to seal it.
The tank and the bolts are made from material having an allowable normal
stress of 150 MPa and 250 MPa, respectively. (Answers t = 26.7 mm and
n = 820 bolts).
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
