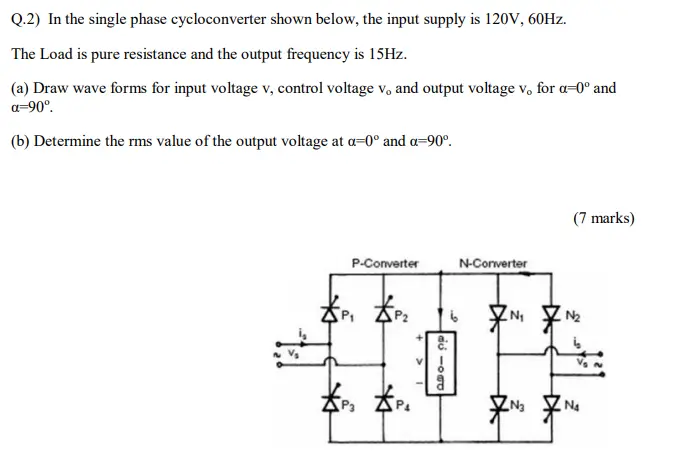

Q.2) In the single phase cycloconverter shown below, the input supply is 120V, 60Hz. The Load is pure resistance and the output frequency is 15Hz. (a) Draw wave forms for input voltage v, control voltage v. and output voltage vo for a=0° and a=90° (b) Determine the rms value of the output voltage at a=0° and a=90°. P-Converter N-Converter PP2 ☑P3 ☑PA + 2011 N₁ (7 marks) N3 N4
