السؤال
Transcribed Image Text:
(25 points)
The transfer function H(s) of a system has the three zeros and three poles shown in the figure. If H(oo) = 4, find the transfer function, plot its Bode amplitude and
phase plots and determine the values of those plots at the frequency w = 2 rad/s, and the absolute value of errors with respect to the exact values at that frequency.
Note: In this problem, you may only submit numerical answers. (i.e. If 4 is the correct answer, 4 will be marked as correct, but 2+2 will be marked as incorrect.)

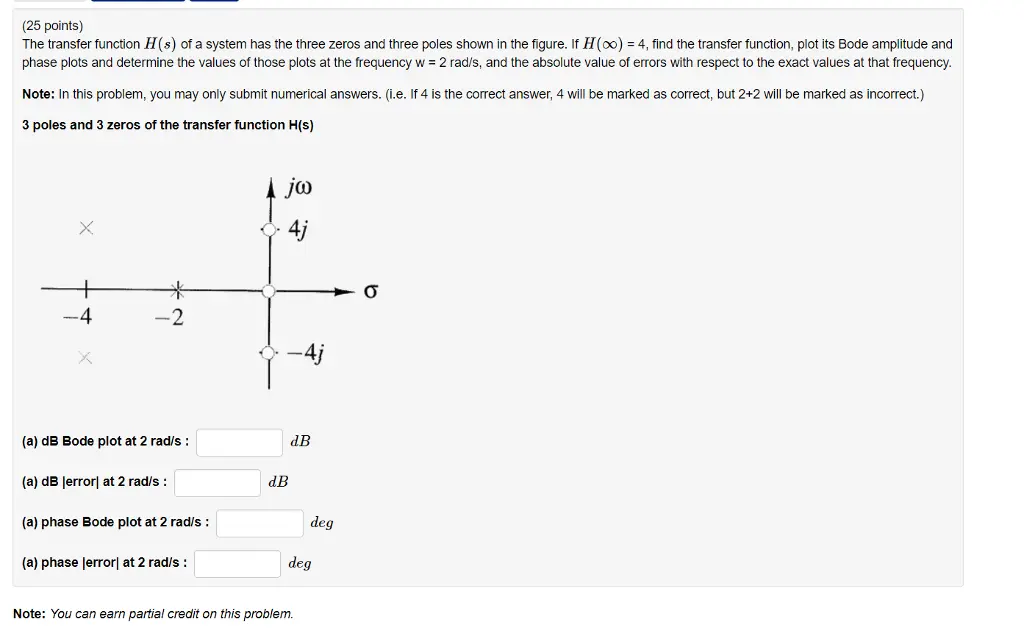

3 poles and 3 zeros of the transfer function H(s)
jo
4j
-4
-2
×
-4j
(a) dB Bode plot at 2 rad/s:
dB
(a) dB [error] at 2 rad/s :
dB
(a) phase Bode plot at 2 rad/s:
deg
(a) phase [error] at 2 rad/s:
deg
Note: You can earn partial credit on this problem.
