السؤال
Transcribed Image Text:

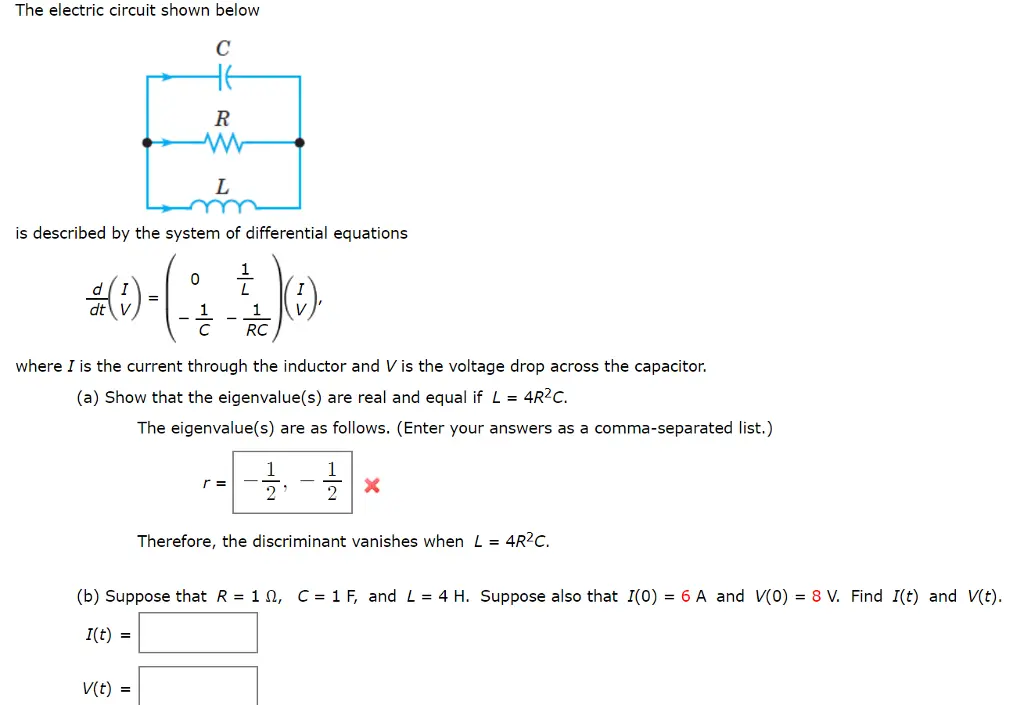

The electric circuit shown below
C
R
w
L
is described by the system of differential equations
10-(14)0
RC
where I is the current through the inductor and V is the voltage drop across the capacitor.
(a) Show that the eigenvalue(s) are real and equal if L = 4R²C.
The eigenvalue(s) are as follows. (Enter your answers as a comma-separated list.)
r =
1
12
Therefore, the discriminant vanishes when L = 4R²C.
(b) Suppose that R = 1, C = 1 F, and L = 4 H. Suppose also that I(0) = 6 A and V(0) = 8 V. Find I(t) and V(t).
I(t) =
V(t) =
